CeTZuron

Neural Network Drawing Package (CeTZuron)

Installation

1. Clone the repository

$ git clone https://github.com/rice8y/cetzuron.git
$ cd cetzuron

2. Install the package locally via justfile, .sh, or .bat

2-1. Using justfile

$ just install
Example on WSL2 (Ubuntu)
$ just install
Package cetzuron version 0.1.0 has been installed to /home/rice8/.local/share/typst/packages/local/cetzuron/0.1.0

2-2. Using .sh

$ chmod +x install.sh
$ ./install.sh
Example on WSL2 (Ubuntu)
$ ./install.sh
Package cetzuron version 0.1.0 has been installed to /home/rice8/.local/share/typst/packages/local/cetzuron/0.1.0

2-3. Using .bat

> install.bat
Example on Windows (cmd)
> install.bat
C:install.sh
C:justfile
C:README.md
C:typst.toml
C:docs\ae\sample_ae.pdf
C:docs\ae\sample_ae.typ
C:docs\fcnn\sample_fcnn.pdf
C:docs\fcnn\sample_fcnn.typ
C:docs\lstm\sample_lstm.pdf
C:docs\lstm\sample_lstm.typ
C:docs\rnn\sample_rnn.pdf
C:docs\rnn\sample_rnn.typ
C:src\ae.typ
C:src\fcnn.typ
C:src\lib.typ
C:src\lstm.typ
C:src\requirements.typ
C:src\rnn.typ
23 File(s) copied
Package cetzuron version 0.1.0 has been installed to C:\Users\yoneyama\AppData\Roaming\typst\packages\local\cetzuron\0.1.0

Usage

Import the package using #import.

#import "@local/cetzuron:0.1.0"

Fully Connected Neural Network #fcnn

Parameters

fcnn(
    inputNodes: int,
    middleNodes: int,
    outputNodes: int,
    middleLayers: int,
    label: bool,
) -> content

inputNodes: Number of nodes in the input layer
middleNodes: Number of nodes in hidden layers
outputNodes: Number of nodes in the output layer
middleLayers: Number of hidden layers (default: 3)
label: Whether to show labels (default: true)

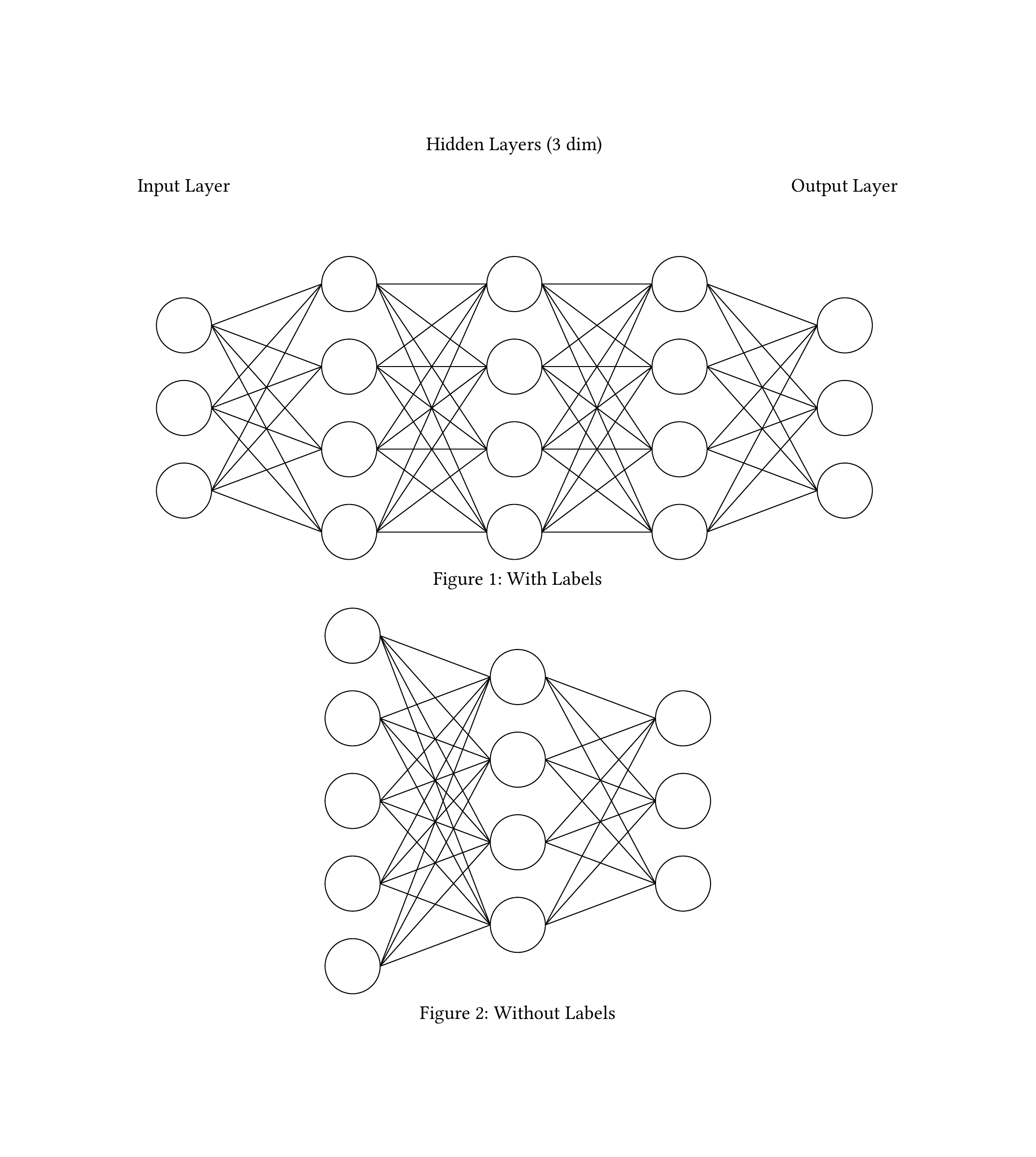

Example usage of #fcnn

#import "@local/cetzuron:0.1.0": *
#set page(width: auto, height: auto)
#set text(lang: "ja", font: "TeX Gyre Termes", size: 10pt)
#show regex("[\p{scx:Han}\p{scx:Hira}\p{scx:Kana}]"): set text(lang: "ja", font: "Harano Aji Mincho", size: 10pt)

#figure(
  fcnn(3, 4, 3),
  caption: [With Labels]
)
#figure(
  fcnn(5, 4, 3, middleLayers: 1, label: false),
  caption: [Without Labels]
)

sample

Recurrent Neural Network #rnn

Parameters

rnn(
    inputNodes: int,
    middleNodes: int,
    outputNodes: int,
    middleLayers: int,
    label: bool,
) -> content

inputNodes: Number of nodes in the input layer
middleNodes: Number of nodes in hidden layers
outputNodes: Number of nodes in the output layer
middleLayers: Number of hidden layers (default: 3)
label: Whether to show labels (default: true)

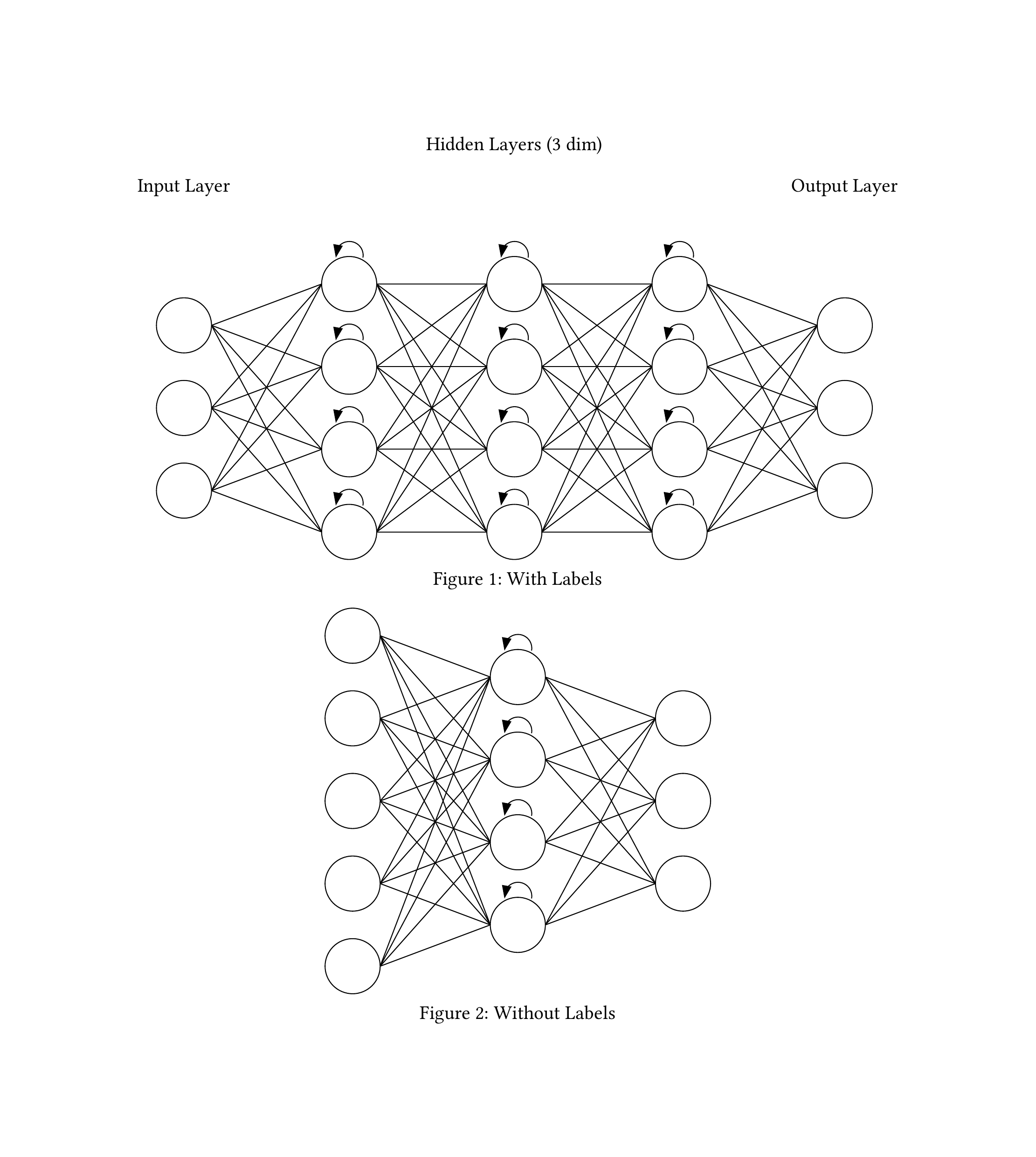

Example usage of #rnn

#import "@local/cetzuron:0.1.0": *
#set page(width: auto, height: auto)
#set text(lang: "ja", font: "TeX Gyre Termes", size: 10pt)
#show regex("[\p{scx:Han}\p{scx:Hira}\p{scx:Kana}]"): set text(lang: "ja", font: "Harano Aji Mincho", size: 10pt)

#figure(
  rnn(3, 4, 3),
  caption: [With Labels]
)
#figure(
  rnn(5, 4, 3, middleLayers: 1, label: false),
  caption: [Without Labels]
)

sample

Long Short-Term Memory #lstm

Parameters

lstm(
    inputNodes: int,
    middleNodes: int,
    outputNodes: int,
    middleLayers: int,
    label: bool,
) -> content

inputNodes: Number of nodes in the input layer
middleNodes: Number of nodes in hidden layers
outputNodes: Number of nodes in the output layer
middleLayers: Number of hidden layers (default: 3)
label: Whether to show labels (default: true)

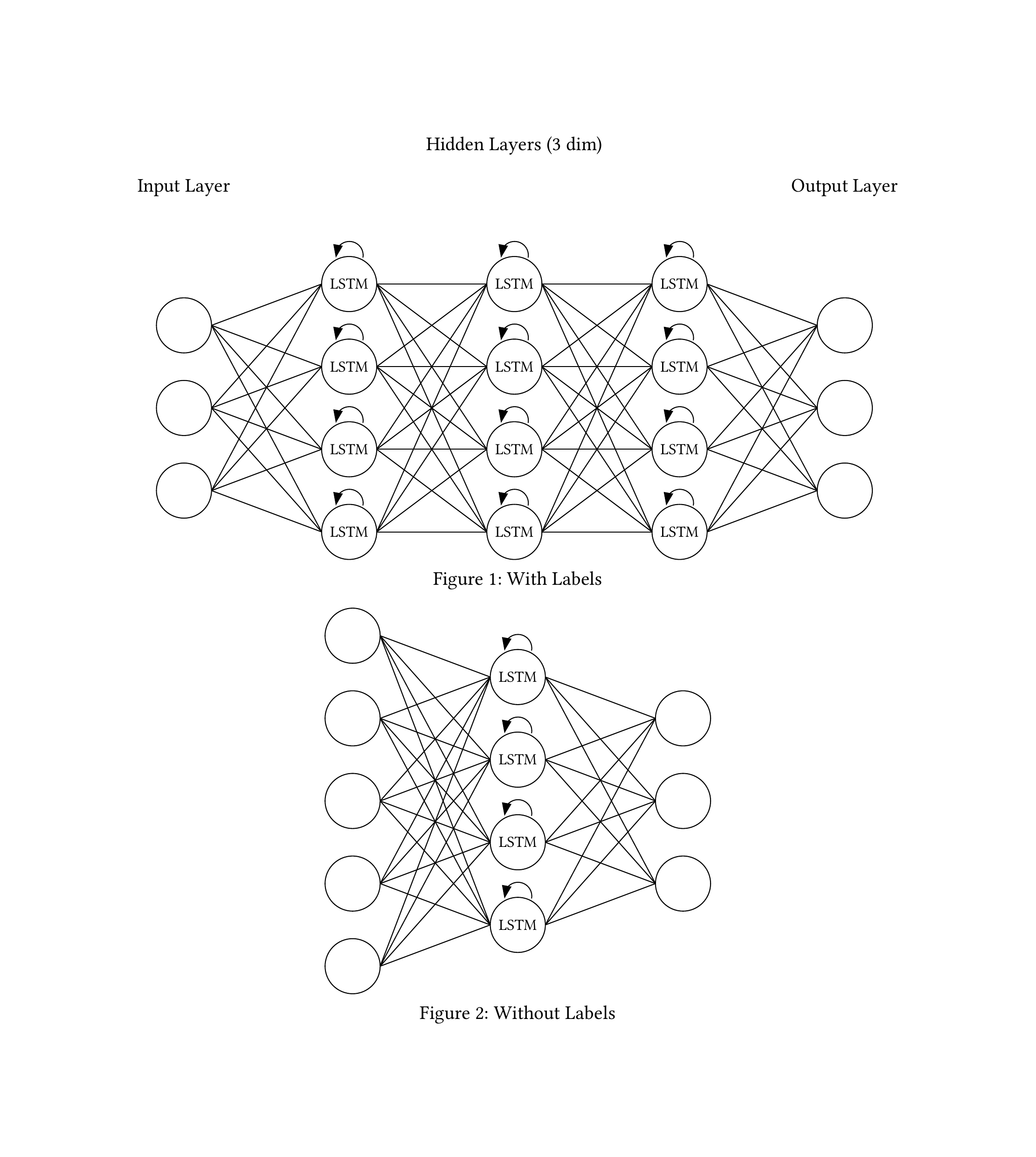

Example usage of #lstm

#import "@local/cetzuron:0.1.0": *
#set page(width: auto, height: auto)
#set text(lang: "ja", font: "TeX Gyre Termes", size: 10pt)
#show regex("[\p{scx:Han}\p{scx:Hira}\p{scx:Kana}]"): set text(lang: "ja", font: "Harano Aji Mincho", size: 10pt)

#figure(
  lstm(3, 4, 3),
  caption: [With Labels]
)
#figure(
  lstm(5, 4, 3, middleLayers: 1, label: false),
  caption: [Without Labels]
)

sample

Autoencoder #ae

Parameters

ae(
    inputNodes: int,
    middleNodes: int,
    style: string,
    label: bool,
) -> content

inputNodes: Number of nodes in input/output layers
middleNodes: Number of nodes in hidden layer
style: Shape of hidden layer [“short”, “full”] (default: “short”)
label: Whether to show labels (default: true)

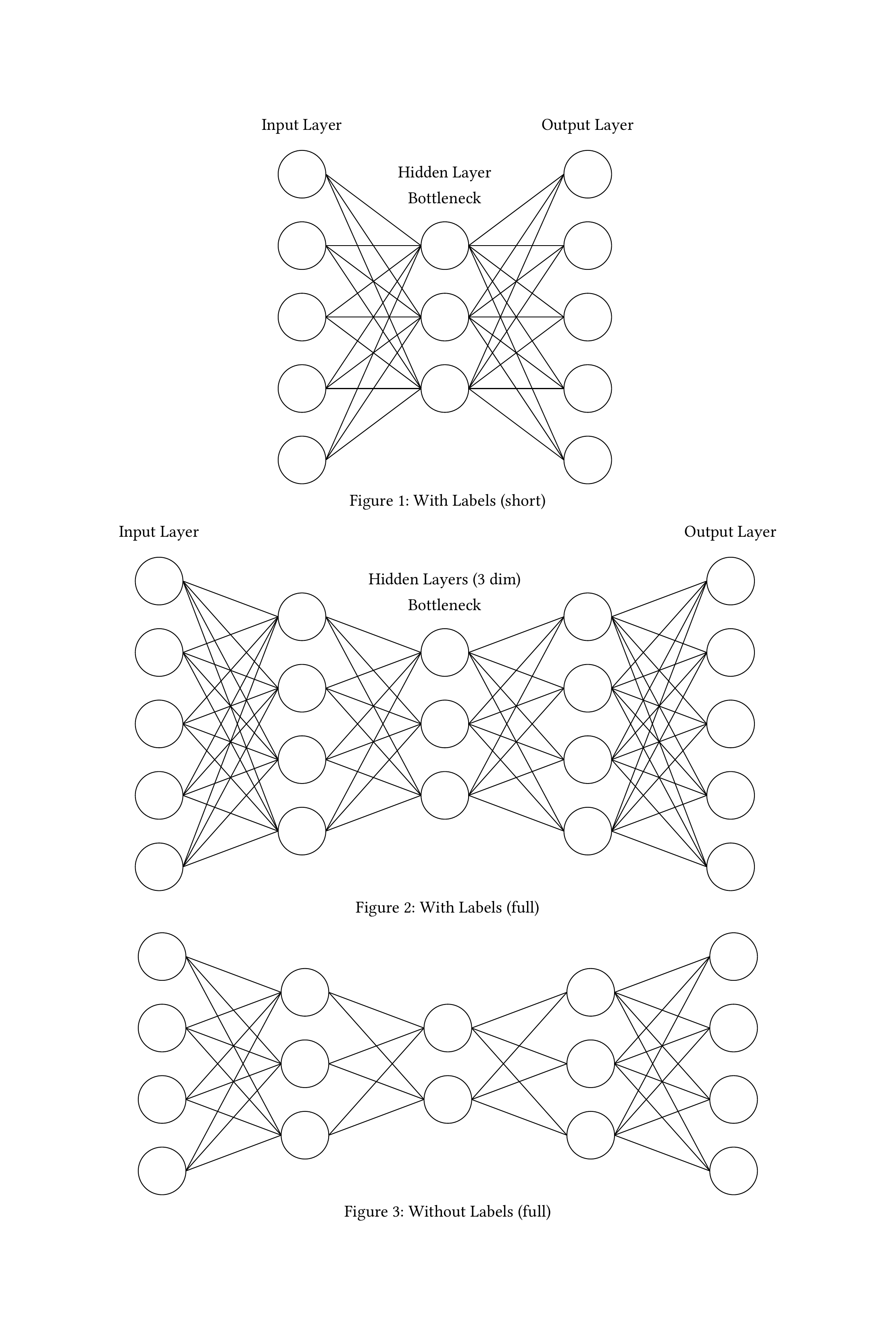

Example usage of #ae

#import "@local/cetzuron:0.1.0": *
#set page(width: auto, height: auto)
#set text(lang: "ja", font: "TeX Gyre Termes", size: 10pt)
#show regex("[\p{scx:Han}\p{scx:Hira}\p{scx:Kana}]"): set text(lang: "ja", font: "Harano Aji Mincho", size: 10pt)

#figure(
  ae(5, 3),
  caption: [With Labels (short)]
)
#figure(
  ae(5, 3, style: "full"),
  caption: [With Labels (full)]
)
#figure(
  ae(4, 2, style: "full", label: false),
  caption: [Without Labels (full)]
)

sample
